Oxygen Analyzer

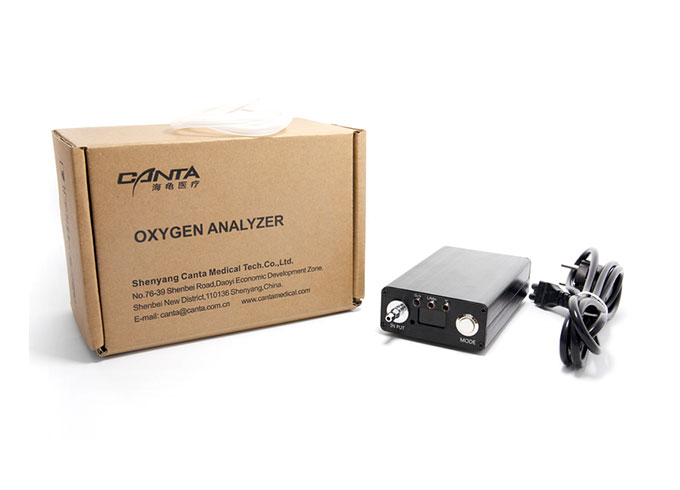

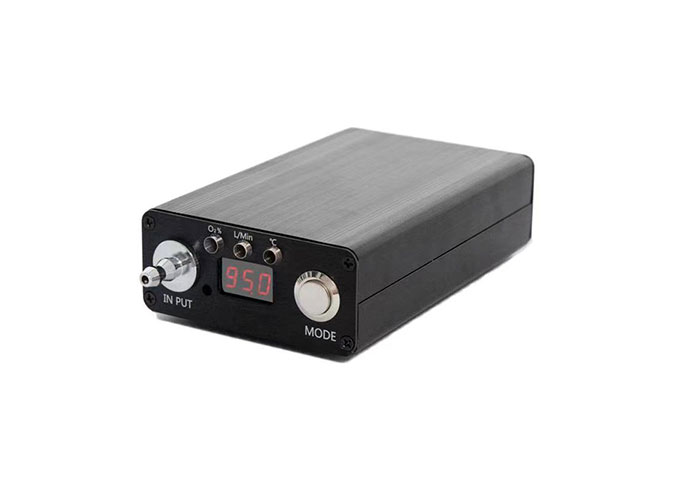

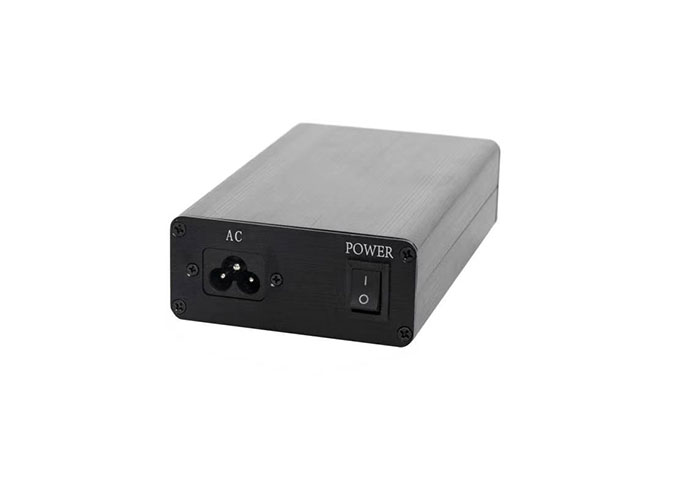

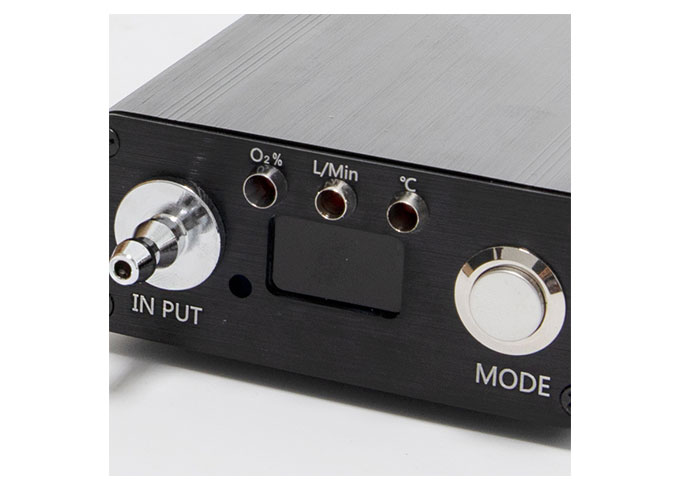

This equipment adopts the principle of ultrasonic measurement of flow concentration and it is suitable for measuring oxygen with a concentration of 21% to 96%. It mainly consists of the main controller, an LED display and a power cord.

Main Features of Oxygen Analyzer

CANTA oxygen analyzer adopts the principle of ultrasonic measurement of flow and concentration, which can accurately measure the flow and concentration information at the output of the oxygen generator to meet the different flow and concentration requirements.

The advantages of the ultrasonic method for measuring oxygen concentration are that there are no consumables, and the factory can be calibrated once. The continuous working time is not less than 5 years generally, and the correction function of the temperature sensor can be added.



Advantages of Oxygen Analyzer

  • The oxygen analyzer should be used in a clean, dust-free, non-corrosive, non-toxic gas and oxidant-free environment;

  • It takes 5 minutes from the time it is turned on until the oxygen analyzer reaches the specified performance;

  • This device is only used as a measuring tool, which can measure the flow value, oxygen concentration value and internal temperature value of the oxygen meter in the current state;

  • The device should not be turned on and off frequently, and the interval should not be less than 5 minutes after it is turned off and then turned on again

Oxygen Analyzer Specifications

Product Name:Oxygen Analyzer
Power Supply:220V  50Hz
Range:0-8.0 L/min

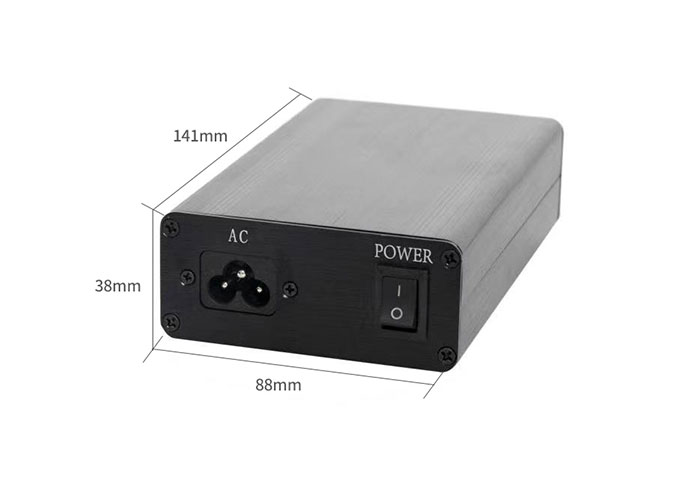

Size:141*88*38mm (L*W*H)
Range:21%-96%
Resolution:0.1 L/min
Weight:380g
O2 Input:PSA oxygen concentrator output air
Accuracy:±0.2 L/min
Display:LCD digital tube
Resolution:0.10%
Accuracy:± 1.5%
