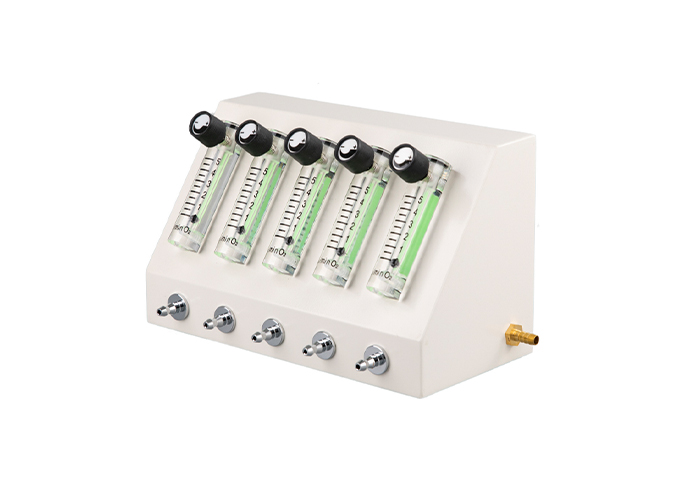

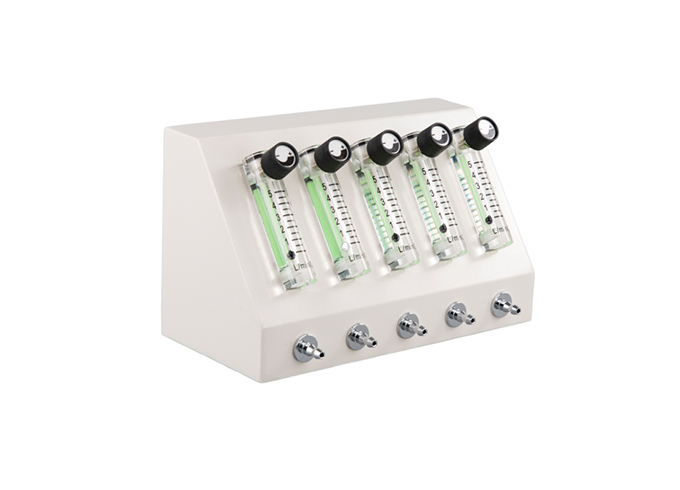

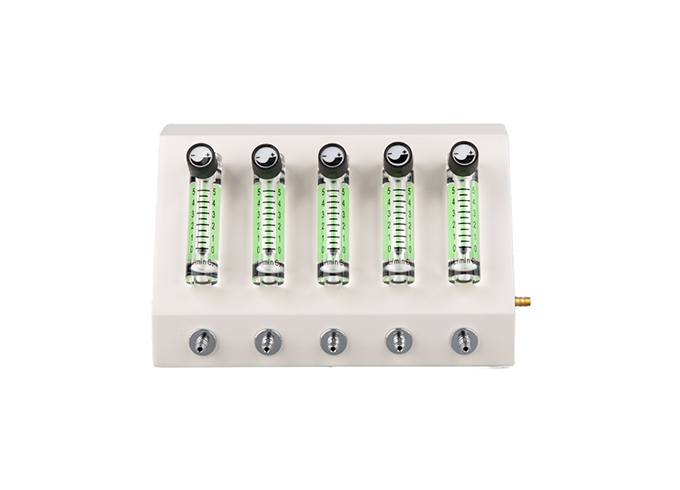

This Oxygen concentrator flow splitter is an assistant to the oxygen concentrator and can provide accurate flowrate to patients simultaneously.
This flow splitter for oxygen supply is designed to split the flow of oxygen generated by a single oxygen concentrator into five separate streams, each of which can support an individual patient. The Canta Medical flow splitter for oxygen concentrator is an innovative device that offers a convenient solution for clinics and small hospitals that need to support multiple patients at once.
It can be used for 5 persons simultaneously;
It can provide an accurate flowrate for each person;
The flowrate of every person can be adjusted separately;
The total flow value cannot exceed the inlet flow value
One air inlet: connected with the outlet of the oxygen concentrator;
5 Outlets: connected with cannulas(oxygen tubes) for users
Product Name: | Flow Splitter For Oxygen Concentrator |
Flow Meter Calibration: | 0-2LPM adjustable (5LPM for choosing) |
Accuracy: | 0.125LPM |
Size: | 270*138*160mm(L*W*H) |
Input Pressure: | 48-345Kpa |
Operation Temperature: | 5-45℃ |
Storage Temperature: | 1-60℃ |
Usage: | Connect to oxygen concentrator |
